Date electrice
Putere

• Max. usable PV input power: 19.2kW;
• Max. charge / discharge power: 12kW;
• Rated output power AC: 12kW

Curent

• Max. input current: 20A / 20A / 20A / 20A
• Max. short circuit current: 30A / 30A / 30A / 30A;
• Max. output current: 18.2A / 17.3A;
• Rated grid output current: 18.2A / 17.3A;

Voltaj

• Max. PV Input DC Voltage: 1000V;
• MPPT Range: 200~850V;
• Rated PV Input DC Voltage: 600V;
• Start-up Voltage: 160V;

Frecvență
Rated grid frequency: 50 Hz
Factor de putere
>0.99 (0.8 leading - 0.8 lagging)
Capabilități
Rata IP
IP66
Condiții de lucru
`-25 ~ +60°C
Dimimensiuni
Mărime
599 x 546 x 243 mm
Date despre produs
Alt cod
12225
Codul Produsului

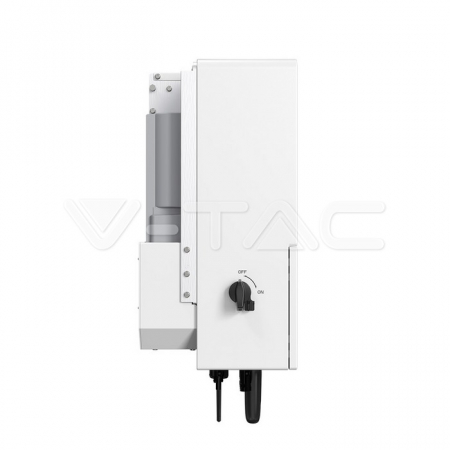

S6-EH3P12K-H
Bucăți per pachet
1
Greutatea produsului
31 kg
